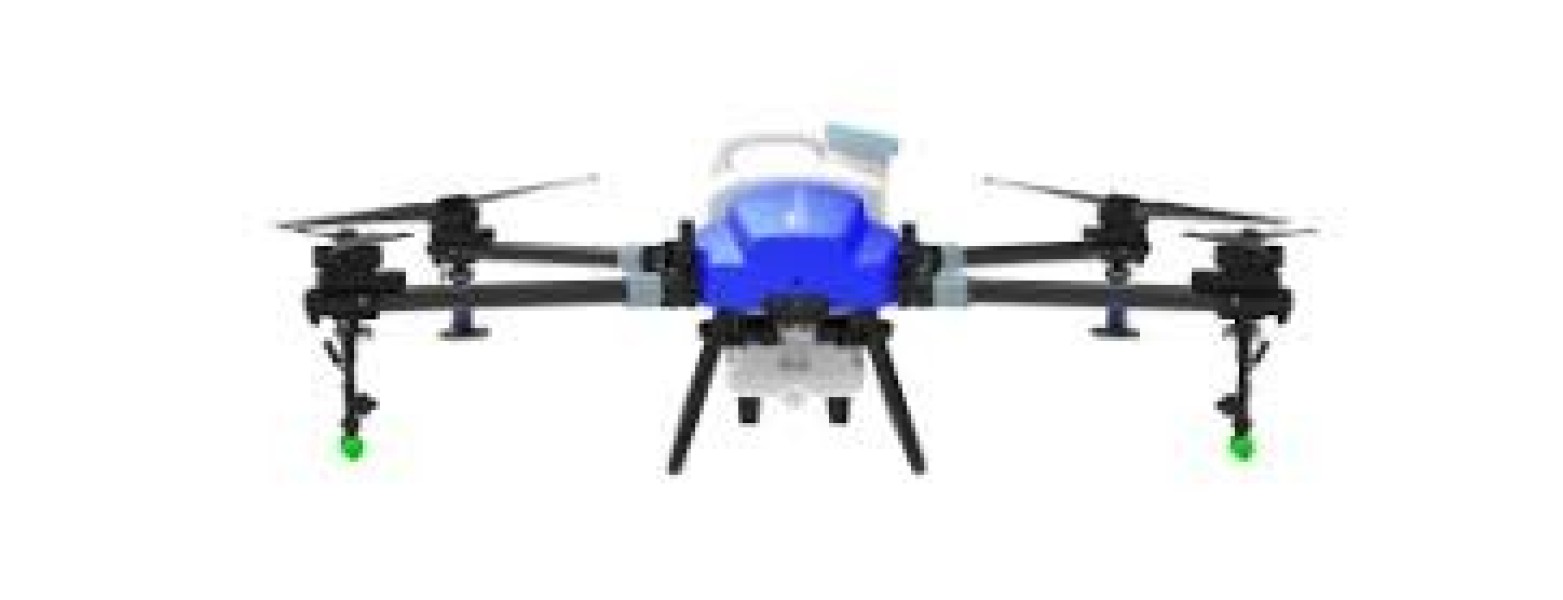

EAVISION HERCULES PRO (EA-30X)

Descripción

The EAvision HERCULES PRO (EA-30X) is a 30L agricultural drone sprayer featuring binocular environment sensing technology for obstacle avoidance and night operations. Key specifications include a 30 kg payload capacity, a maximum spray flow rate of 10 L/min, and a maximum flight time of 22 minutes on an empty load. It also has a foldable, carbon fiber body and a fast-charging system.

Performance and capabilities

Payload: 30 kg

Tank capacity: 30 L

Flight time: Up to 22 minutes (empty load) or 8 minutes 20 seconds (full load)

Spray flow rate: 250 ml/min to 10 L/min

Obstacle avoidance: Binocular environment sensing technology for safe operation in complex terrain

Terrain following: Can operate safely on slopes up to 90 degrees

Night operation: Equipped with a night navigation lighting system for day and night use

Spraying system: Features a CCMSL20000 bimodal mist spray nozzle and a fixed-point accurate spraying function

Design and construction

Body: Foldable carbon fiber body for easy transport

Dimensions (folded): 1260mm × 630mm × 620mm

Weight (aircraft): 36.1 kg

Weight (full loading): 67.1 kg

Charging and power

Battery: Uses a JM 29,000 mAh battery

Charging: Features a fast-charging system that can fully charge the battery in 8-10 minutes
